RESCUEFORM



OPTIVAC Vacuum rescue mattress according to DIN EN 1865

The OPTIVAC vacuum rescue mattress is the ultimate in quality, hygiene, safety and handling. It is equipped with permanent integrated underlay support made of a special, strong material with 14 handles all round, which increases flexibility during transport. The OPTIVAC vacuum rescue mattress is equipped with an automatically closing safety valve with vacuum limiter.

  • Extremely sturdy thanks to solid-material two-component PU film
  • Hygiene: easy cleaning due to completely sealed unit
  • No eyelets, belts, ropes (without textile components)
  • High signalling effect, new colour design
  • Perfect compatibility with all standard restraint systems
  • 6-chamber system, head part designed for separate modelling#
  • Permeable to rays, suitable for X-rays, CT and MRI treatment
  • Automatically closing safety valve, no manual closing
  • Special filling material, high stability, without additional stiffeners
  •  DIN EN 1865

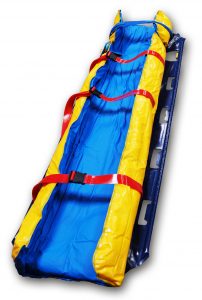

OPTIVAC 2.0 # 5127
Vacuum rescue mattress

with permanent integrated underlay support, 14 handles all around as well as 3 belts for positioning the patient and 1 belt for the head. Adjustable on both sides and interchangeable in case of a defect, inclusive a head strap. The Microspace filling ensures an optimal pressure distribution and shaping.
Size: 80 x 210 cm
Weight: ca. 9.0 kg
Material: high flexible PU film
Colour: blue (patient side), yellow (outer
side) fabric-reinforced

··single fold 100 x 73 x 16 cm
··double fold 80 x 73 x 22 cm

OPTIVAC 2.0 # 5127
Vacuum rescue mattress
according to DIN EN 1865 with permanent integrated underlay support, 14 handles all around as well as 3 belts for positioning the patient.
Size: 80 x 210 cm
Weight: approx. 9.0 kg
Colour: vibrant yellow / blue

2 IN 1: OPTIVAC Multifunctional vacuum rescue support

The OPTIVAC multifunction overlay can be used as a stretcher overlay or as a stabilizing vacuum mattress as required. It is compatible with all common restraint systems. The double usefulness saves space and bring down costs, the targeted elimination of textile elements facilitates the cleaning. Equipped with a plug valve with safety lock and integrated filler neck.

OPTIVAC # 5038

Multifunctional vacuum rescue support
with 3 belts for positioning
the patient
Size: 60/110 x 205 cm
Weight: ca. 9.0 kg
Colour: blue

  • Double function as a patient trolley
    and vacuum mattress
  • More patient comfort through innovative
    MicroSpace styrofoam ball filling
  • Space saving

EURO vacuum rescue mattress according to DIN EN 1865

Rescueform® EURO vacuum rescue mattresses set standards in quality, safety and handling. From the simple rescue mattress according to DIN EN 1865 till the rescue mattress with 5-pin belt system, these models are designed for every conceivable application and location.
All models have a transport underlay support made of sturdy, flame-retardant fabric. They have 14 handles all around, which benefits the transport flexibility. All Rescueform® EURO vacuum rescue mattresses have a plug valve.

Rescueform® # 5023
EURO vacuum rescue mattress
according to DIN EN 1865
With detachable underlay support with integrated 4-point restraint system and leg belt. On this model, the underlay support is not  ttached to the vacuum mattress. It is thus possible to use this support also as a rescue sheet with restraint system.
Size: 80 x 210 cm
Weight: approx. 10.5 kg
Colour: orange / blue

Rescueform® # 5024
EURO vacuum rescue mattress
according to DIN EN 1865
With detachable underlay support, leg belt and integrated 5-point restraint system, with central lock for opening the belts within seconds, just as in a formula 1 cockpit. The upholstered legspreading block reduces the patient’s feeling of pressure. This system permits the safe rescue of patients in inclined positions (e.g. in narrow stairways or in the mountains)
without additional stress for the patient.
Size: 80 x 210 cm
Weight: approx. 11 kg
Colour: orange/blue

STANDARD Vacuum rescue mattress

Rescueform® standard vacuum mattresses are particularly heat-insulating due to their filling capacity. They have an encircling supporting rope with integrated handles which ensure a comfortable carrying. Equipped with a plug valve with safety lock and integrated filler neck.



Rescueform® # 5010
Vacuum rescue mattress
with all-round carrying rope
Size: 75 x 200 cm
Weight: approx. 7.5 kg
Colour: orange

Rescueform® Gurt-Set # 5013
for RESCUEFORM vacuum mattresses
# 5010 / 5011 / 5012
1 pair of belts with Velcro® fasteners
for positioning the patient

Rescueform® # 5011
Vacuum rescue mattress
with all-round carrying rope (without illustration)
Size: 65 x 200 cm
Weight: approx. 6.5 kg
Colour: orange

Rescueform® # 5012
Vacuum rescue mattress
with all-round carrying rope (without illustration)
Size: 55 x 190 cm
Weight: approx. 5.5 kg
Colour: orange

Rescueform® # 5986
Vacuum rescue mattress
with integrated handle bar
(5 handles per length side)
Best value pricing (Export)
Size: 95 x 200 cm
Weight: 10 kg
Colour: orange / blue

For our entire product range and further information, please see our respective product brochure under “Downloads“!

Rescue basket stretcher with special equipment
Rescueform® rescue baskets are approved by the Sea Employers’
Liability Insurance Association.

Rescueform® rescue baskets correspond to the requirements of the health care regulations and are used where the transport of injured persons is not possible with conventional transport equipment. Predestined areas of use are pits, shafts and caves as well as ships, boilers, construction sites and mountain rescue. Rescueform® rescue baskets can be used as an abrasive basket or as an abseiling bathtub vertically (only # 5035) or horizontally.





Rescueform® # 5035
Rescue basket stretcher with special equipment
Size: 61 x 216 cm, height: 19 cm
Weight: approx. 28 kg
(completely equipped)
Colour: orange (basket carrier)











Rescueform® # 5036
Rescue basket stretcher »light«

Size: 61 x 216 cm, height: 19 cm
Weight: approx. 25 kg
(completely equipped)
Colour: orange (basket carrier)









For our entire product range and further information, please see our respective product brochure under “Downloads“!

Rescueform® Vacuum Splints

Rescueform® vacuum splints allow a gentle fixation of the extremities, without exerting pressure to the blood circulation. Rescueform® arm and leg splints are available in different sizes for different patient groups. They are permeable to X-rays and adapt to any fracture.

Optivac 2.0

OPTIVAC 2.0 # 5164
Vacuum arm splint
Four-chamber system, angularly designed with 3 interchangeable Velcro® fasteners. To be used as a vacuum cushion. Valve for one-handed operation. The Microspace filling ensures optimal pressure distribution and shaping.
Length: 60 cm
Material: high flexible PU film
Color: blue (patient side), fabric-reinforced
2-component PU film
Color: yellow (outside)

OPTIVAC 2.0 # 5174
Vacuum leg splint
Three-chamber system with foot part, with 4 pushbuttons, with 4 interchangeable Velcro® fasteners, valve for one-handed operation. The Microspace filling ensures optimal pressure distribution and shaping.
Length: 100 cm
Material: high flexible PU film
Color: blue (patient side), fabric-reinforced
2-component PU film
Color: yellow (outside)

OPTIVAC 2.0 # 5184
Vacuum forearm splint
One-chamber system, opened to use as
a hand or head pillow, with 2  interchangeable Velcro® fasteners, valve for one-handed operation. The Microspace filling ensures optimal pressure distribution and shaping.
Size: 55 x 35 cm
Material: high flexible PU film
Color: blue (patient side), fabric-reinforced
2-component PU film
Color: yellow (outside)

Also available as a set, together with a Vacuum pump #5370 and Bag #5191t!

Rescueform®

Rescueform® # 5131
Vakuum-Arm splint
Four-chamber system, angular design,
with 3 Velcro® fasteners for variable
positioning.
Material: solid-material plastic film
Colour: orange

Rescueform® # 5171
Vakuum-Leg Splint
Three-chamber system with foot part and 4 Velcro® fasteners. Can on the foot side be opened up by 3 snap fasteners and can thus be used as a vacuum pillow, e.g. for the spine or for positioning a child.
Length: 90 cm,
Material: solid-material plastic film
Colour: orange

Also available as a set, together with a Vacuum pump #5370 and Bag #5191t!

Rescueform® MULTISOFT Vacuum-Slpints

The extremely flexible film of the MULTISOFT vacuum splints, together with the
MICROSPACE filling, allows an exceptionally precise adaptability, which cannot be achieved by conventional materials. The MICROSPACE system is also used for the patient placing in the operating room.

Rescueform® # 5193
Multisoft Vacuum-Splint-Set

Consisting of:
·Forearm splint # 5133
·Arm splint # 5143
·Leg splint, short # 5153
·Leg splint, long # 5163
·Vacuum pump # 5370
·Carrying bag # 5193t

All pieces of the set are also available as single parts!

For our entire product range and further information, please see our respective product brochure under “Downloads“!

Rescueform® Rollboard – the lifting assistance

The Rescueform® Rollboard provides simple but effective lifting assistance meaning considerably less effort for emergency services and care staff – including and particularly for heavy patients. The Rollboard functions like a production line where the outer sheet rolls on the board core and thus transports the patient horizontally. The Rescueform® Rollboard can be stowed under the patient trolley – robust, washable and can be disinfected.

Rescueform® # 5230
Rollboard long
Foldable transfer aid with 2 handles
Size: 45 x 100 cm
Colour: vibrant yellow

Rescueform® # 5235
Rollboard short
Compact one piece lifting assistance
for easy stowing lengthways under
the patient trolley.
Size: 45 x 70 cm
Colour: vibrant yellow

Rollboard Bag # 5230t
for Rollboard # 5230 folded
Colour: Orange (Nylon-fabric)

For our entire product range and further information, please see our respective product brochure under “Downloads“!

Rescueform® rescue sheets

Rescueform® rescue sheets are made of acrylic-coated nylon fabric and are additionally stabilized lengthwise and crosswise by end-to-end straps. Rescueform® rescue sheets are robust, dirt repellent, disinfectant resistant and washable.

  • available in 6 different versions
  • different sizes (from 70 x 200cm up to 110 x 200cm)
  • between 6 and 22 holders
  • colour: orange

For our entire product range and further information, please see our respective product brochure under “Downloads“!

KIDDY children restraint system

KIDDY offers maximum safety and comfortable placing of children. The system assures against forward, backward, sideways, and upward forces with adapted placing on the integrated vacuum mattress.

Rescueform® # 5800
KIDDY system (complete)
Consisting of:
·safety cover with belt system # 5801
·vacuum mattress # 5802
·covering for vacuum mattress # 5803
·bag # 5804t

Also available as single parts













Rescueform® Vacuum Splints for children

The gentle transport of children makes an increased demand on the emergency
rescue service and its equipment. The Rescueform® Vacuum splint system for children provides a child-friendly handling of bone fractures without the need for size adjustment of adult systems.

Rescueform® # 5135
Vacuum children arm splint size 1
Suitable for children up to
5 years of age.
Material: PU film
Color: red



Rescueform® # 5136
Vacuum children arm splint size 2
Suitable for children up to 11 years
of age (can also be used as a leg splint
for infants).
Material: PU film
Color: red



Auch erhätlich als SET mit orangener Tasche #5215t!

For our entire product range and further information, please see our respective product brochure under “Downloads“!

NECLOC cervical head restraints

Owing to its two half segments, NECLOC immobilizes the vertebral column completely. NECLOC can be put on fast, simply andprecisely, without having to move the patient. The material is permeable to X-rays and adapts easily to cold temperatures as well. The large trachea opening permits the feeling of the carotid artery pulse as well as an impeccable tracheotomy.

NECLOC is available in 5 sizes that can be combined together.

NECLOC size 2 (child) # 5711
Colour: green
NECLOC size 3 (medium) # 5712
Colour: darb blue
NECLOC size 4 (standard) # 5713
Colour: yellow
NECLOC size 5 (large) # 5714
Colour: orange
NECLOC size 6 (x-large) # 5715
Colour: light blue

NECLOC cervical head restraint set
sizes 2 – 6 # 5700
six parts, including bag
NECLOC cervical head restraint set
sizes 2 + 4 + 5 # 5705
three parts, including bag
Special child sizes as well as one-piece collar on request.

For our entire product range and further information, please see our respective product brochure under “Downloads“!

For our entire product range and further information, please see our respective product brochure under “Downloads“!

Metal-Vacuum Pump

Item No. 5320

Length: 60 cm

Plastic Vacuum Pump, red

Item No.  5370

Length: 45cm

Light Weight

Plastic Vacuum Pump, antimagnetic

Item No. 5355

Length: 45 cm

can be used for MRT

Vacuum Pump Aluminium, silver anodized

Item No.  5380

Length: 47cm

with foot-operated bracket

Double stroke pump

Item No. 5360

Length: 40cm

For ventilation and inflation of large vacuum mattresses and inflatable products. With foot plate and large vertical piston, 2 x 2.000 cm³, 2 x 2 l/min according DIN EN 16051

Carrying Bags

Item No. 5191 Colour: Blue, For Rescue Sheets and Children-Splint-Sets
Item No. 5019t Colour: Blue, For all Rescue Mattresses
Item No. 5215t Colour: Orange, For Rescue Sheets and Children-Splint-Sets

Repair-Kits

Item No. 5400 For all Rescueform® products of PVC film, consisting of repair films and special adhesive
Item No. 5195 for products made of PU film, consisting of repair film and pecial adhesive
Item No. 5180 for all Optivac products of PU film, consisting of repair film and special adhesive

Replacement Valve

Item No. 50 Replacement-Safety plug valve with vacuum limiter, blue
Item No. 51 Replacement-Screw-in valve, grey
Item No. 90148 Optivac CPC Inline-Valve

For our entire product range and further information, please see our respective product brochure under “Downloads“!
